「VAE＋DDPMでMNIST数字生成 – カテゴリ指定サンプリングの実装例」

# =========================================================
# MNIST: VAE(latent) + DDPM(latent) with Class-Conditional CFG
# 改良点まとめ:
# - VAE logits化 + BCEWithLogitsLoss + Edge損失（確率で計算）
# - KLウォームアップ(beta_max=0.5 推奨)
# - VAE幅 ch=48（シャープ化）
# - DDPM: Cosineスケジュール
# - DDPM: クラス条件付き（classifier-free: cond_drop_prob）
# - CFG推論 (guidance_w)
# - AMP / GradClip / CosineAnnealingWarmRestarts
# - EMA（学習中にshadow更新→推論時にコピー）
# =========================================================

import os, math, random
from dataclasses import dataclass
import numpy as np
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils.data import DataLoader
from torchvision import datasets, transforms, utils as vutils
from tqdm import tqdm

# --------------------
# ユーティリティ
# --------------------
def seed_everything(seed=42):
    random.seed(seed); np.random.seed(seed)
    torch.manual_seed(seed); torch.cuda.manual_seed_all(seed)
    torch.backends.cudnn.deterministic = True
    torch.backends.cudnn.benchmark = False

def get_device():
    if torch.cuda.is_available():
        return torch.device("cuda")
    if getattr(torch.backends, "mps", None) and torch.backends.mps.is_available():
        return torch.device("mps")
    return torch.device("cpu")

# ================= Improved CNN VAE for MNIST (28x28x1) =================
# 画質UPの工夫:
# - ResidualConvBlock(GroupNorm+SiLU+Dropout)
# - BCEWithLogits + Edge(勾配)損失ブレンド（エッジは確率空間で）
# - KLウォームアップ(betaはエポック依存、beta_max=0.5推奨)

class ResidualConvBlock(nn.Module):
    def __init__(self, in_ch, out_ch, groups=8, dropout=0.05):
        super().__init__()
        self.block1 = nn.Sequential(
            nn.GroupNorm(groups, in_ch),
            nn.SiLU(),
            nn.Conv2d(in_ch, out_ch, kernel_size=3, padding=1)
        )
        self.block2 = nn.Sequential(
            nn.GroupNorm(groups, out_ch),
            nn.SiLU(),
            nn.Dropout2d(dropout),
            nn.Conv2d(out_ch, out_ch, kernel_size=3, padding=1)
        )
        self.skip = (nn.Conv2d(in_ch, out_ch, 1) if in_ch != out_ch else nn.Identity())

    def forward(self, x):
        h = self.block1(x)
        h = self.block2(h)
        return h + self.skip(x)

class ConvEncoder(nn.Module):
    # 28x28 -> 14x14 -> 7x7
    def __init__(self, latent_dim=16, ch=48):
        super().__init__()
        self.stem = nn.Conv2d(1, ch, 3, padding=1)
        self.res1 = ResidualConvBlock(ch, ch)                 # 28x28
        self.down1 = nn.Conv2d(ch, ch*2, 4, stride=2, padding=1)  # ->14x14
        self.res2 = ResidualConvBlock(ch*2, ch*2)             # 14x14
        self.down2 = nn.Conv2d(ch*2, ch*4, 4, stride=2, padding=1) # ->7x7
        self.res3 = ResidualConvBlock(ch*4, ch*4)             # 7x7
        self.proj  = nn.Linear((ch*4)*7*7, 256)
        self.mu     = nn.Linear(256, latent_dim)
        self.logvar = nn.Linear(256, latent_dim)

    def forward(self, x):
        h = self.stem(x)
        h = self.res1(h)
        h = self.down1(h)
        h = self.res2(h)
        h = self.down2(h)
        h = self.res3(h)
        h = h.view(h.size(0), -1)
        h = F.silu(self.proj(h))
        mu, logvar = self.mu(h), self.logvar(h)
        return mu, logvar

class ConvDecoder(nn.Module):
    # 7x7 -> 14x14 -> 28x28
    def __init__(self, latent_dim=16, ch=48):
        super().__init__()
        self.fc   = nn.Linear(latent_dim, (ch*4)*7*7)
        self.res3 = ResidualConvBlock(ch*4, ch*4)             # 7x7
        self.up1  = nn.ConvTranspose2d(ch*4, ch*2, 4, stride=2, padding=1) # ->14x14
        self.res2 = ResidualConvBlock(ch*2, ch*2)             # 14x14
        self.up2  = nn.ConvTranspose2d(ch*2, ch, 4, stride=2, padding=1)   # ->28x28
        self.res1 = ResidualConvBlock(ch, ch)                 # 28x28
        self.head = nn.Conv2d(ch, 1, 3, padding=1)

    def forward(self, z):
        h = F.silu(self.fc(z)).view(z.size(0), -1, 7, 7)
        h = self.res3(h)
        h = self.up1(h)
        h = self.res2(h)
        h = self.up2(h)
        h = self.res1(h)
        x_logits = self.head(h)   # ← logitsを返す（sigmoidしない）
        return x_logits

class VAE(nn.Module):
    def __init__(self, latent_dim=16, ch=48):
        super().__init__()
        self.enc = ConvEncoder(latent_dim, ch)
        self.dec = ConvDecoder(latent_dim, ch)

    def reparam(self, mu, logvar):
        std = torch.exp(0.5 * logvar)
        eps = torch.randn_like(std)
        return mu + eps * std

    def forward(self, x):
        mu, logvar = self.enc(x)
        z = self.reparam(mu, logvar)
        x_logits = self.dec(z)
        return x_logits, mu, logvar, z

# --------- Edge-aware Reconstruction Loss + KL Warmup ----------
def image_gradients(x):
    kx = torch.tensor([[[[-1, 0, 1],
                         [-2, 0, 2],
                         [-1, 0, 1]]]], device=x.device, dtype=x.dtype)
    ky = torch.tensor([[[[-1, -2, -1],
                         [ 0,  0,  0],
                         [ 1,  2,  1]]]], device=x.device, dtype=x.dtype)
    gx = F.conv2d(x, kx, padding=1)
    gy = F.conv2d(x, ky, padding=1)
    return torch.sqrt(gx*gx + gy*gy + 1e-6)

def vae_loss(x, x_logits, mu, logvar, recon_type="bce", edge_lambda=0.05, beta=1.0):
    if recon_type == "mse":
        x_hat = torch.sigmoid(x_logits)
        recon = F.mse_loss(x_hat, x, reduction="sum")
    else:
        recon = F.binary_cross_entropy_with_logits(x_logits, x, reduction="sum")

    if edge_lambda > 0:
        x_hat_prob = torch.sigmoid(x_logits)
        gx = image_gradients(x)
        gx_hat = image_gradients(x_hat_prob)
        edge = F.l1_loss(gx_hat, gx, reduction="sum")
        recon = recon + edge_lambda * edge

    kl = -0.5 * torch.sum(1 + logvar - mu.pow(2) - logvar.exp())
    return recon + beta * kl, recon, kl

def kl_warmup(epoch, total_epochs, min_beta=0.0, max_beta=0.5):
    t = epoch / max(1, total_epochs)
    beta = min_beta + 0.5*(max_beta - min_beta)*(1 - math.cos(math.pi * min(t, 1.0)))
    return beta

# --------- Training (VAE) ----------
def train_vae(model, loader, device, epochs=10, lr=1e-3, out_dir="runs_vae",
              recon="bce", edge_lambda=0.05, beta_max=0.5, beta_min=0.0,
              save_recon_every_epoch=True, weight_decay=1e-4):
    os.makedirs(out_dir, exist_ok=True)
    opt = torch.optim.AdamW(model.parameters(), lr=lr, weight_decay=weight_decay)
    scaler = torch.cuda.amp.GradScaler(enabled=(device.type=='cuda'))
    model.to(device)

    for ep in range(1, epochs+1):
        model.train()
        beta = kl_warmup(ep, epochs, min_beta=beta_min, max_beta=beta_max)
        pbar = tqdm(loader, desc=f"[VAE*] epoch {ep}/{epochs} (beta={beta:.3f})")
        total, total_rec, total_kl = 0.0, 0.0, 0.0

        for x, _ in pbar:
            x = x.to(device)
            with torch.cuda.amp.autocast(enabled=(device.type=='cuda')):
                x_logits, mu, logvar, _ = model(x)
                loss, rec, kl = vae_loss(x, x_logits, mu, logvar,
                                         recon_type=recon, edge_lambda=edge_lambda, beta=beta)
            opt.zero_grad(set_to_none=True)
            scaler.scale(loss).backward()
            torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)
            scaler.step(opt); scaler.update()

            total += loss.item(); total_rec += rec.item(); total_kl += kl.item()
            pbar.set_postfix(loss=f"{total/len(loader):.2f}",
                             rec=f"{total_rec/len(loader):.2f}",
                             kl=f"{total_kl/len(loader):.2f}")

        if save_recon_every_epoch:
            with torch.no_grad():
                x_vis = next(iter(loader))[0][:64].to(device)
                x_logits, _, _, _ = model(x_vis)
                x_hat = torch.sigmoid(x_logits)
                grid = vutils.make_grid(torch.cat([x_vis, x_hat], dim=0), nrow=16)
                from torchvision.utils import save_image
                save_image(grid, os.path.join(out_dir, f"recon_ep{ep}.png"))

    return model

# --------------------
# DDPM（Cosineスケジュール + Classifier-Free Guidance 対応）
# --------------------
@dataclass
class DDPMConfig:
    timesteps: int = 1000
    beta_start: float = 1e-4  # 未使用（cosineで上書き）
    beta_end: float = 0.02    # 未使用（cosineで上書き）

class TimeEmbedding(nn.Module):
    def __init__(self, embedding_dim=64, max_period=10000):
        super().__init__()
        self.embedding_dim = embedding_dim
        self.max_period = max_period
    def forward(self, t):
        half = self.embedding_dim // 2
        device = t.device
        freqs = torch.exp(-math.log(self.max_period) * torch.arange(0, half, device=device) / half)
        args = t.float().unsqueeze(1) * freqs.unsqueeze(0)
        emb = torch.cat([torch.cos(args), torch.sin(args)], dim=-1)
        if self.embedding_dim % 2 == 1:
            emb = F.pad(emb, (0,1))
        return emb

class LatentNoisePredictor(nn.Module):
    def __init__(self, latent_dim, num_classes=10, hidden=768, emb_dim=64):
        super().__init__()
        self.te = TimeEmbedding(emb_dim)
        self.ce = nn.Embedding(num_classes + 1, emb_dim)  # +1: null token
        nn.init.normal_(self.ce.weight, std=0.02)
        self.null_class_idx = num_classes

        self.fc1 = nn.Linear(latent_dim + emb_dim + emb_dim, hidden)
        self.fc2 = nn.Linear(hidden, hidden)
        self.out = nn.Linear(hidden, latent_dim)

    def forward(self, z_t, t, y=None):
        if y is None:
            y = torch.full((z_t.size(0),), self.null_class_idx, device=z_t.device, dtype=torch.long)
        te = self.te(t)
        ce = self.ce(y)
        x = torch.cat([z_t, te, ce], dim=1)
        h = F.silu(self.fc1(x))
        h = F.silu(self.fc2(h))
        return self.out(h)  # ここでは ε を直接予測（v-paramはオプションのため未使用）

class DDPM:
    def __init__(self, cfg, device):
        self.cfg = cfg
        self.device = device
        # ---- Cosine ᾱ(t) ----
        def _cosine_alphas_cumprod(T, s=0.008):
            steps = torch.arange(T+1, dtype=torch.float32)
            f = torch.cos(((steps/T + s) / (1+s)) * math.pi * 0.5) ** 2
            a_bar = f / f[0]
            return a_bar[1:]  # 長さT
        alphas_cumprod = _cosine_alphas_cumprod(cfg.timesteps).to(device)  # ᾱ_t

        alphas = torch.cat([alphas_cumprod[0:1],
                            (alphas_cumprod[1:] / alphas_cumprod[:-1]).clamp(1e-8, 1.0)], dim=0)
        betas = 1.0 - alphas

        self.betas = betas
        self.alphas = alphas
        self.alphas_cumprod = alphas_cumprod
        self.sqrt_alphas_cumprod = torch.sqrt(alphas_cumprod)
        self.sqrt_one_minus_alphas_cumprod = torch.sqrt(1.0 - alphas_cumprod)

    def q_sample(self, x0, t, noise=None):
        if noise is None:
            noise = torch.randn_like(x0)
        return (
            self.sqrt_alphas_cumprod[t].unsqueeze(1) * x0 +
            self.sqrt_one_minus_alphas_cumprod[t].unsqueeze(1) * noise,
            noise
        )

    def p_sample(self, model, x_t, t, y=None, guidance_w=0.0):
        beta_t = self.betas[t].unsqueeze(1)
        alpha_t = self.alphas[t].unsqueeze(1)
        alpha_bar_t = self.alphas_cumprod[t].unsqueeze(1)
        sqrt_one_minus_ab = torch.sqrt(1 - alpha_bar_t)

        if guidance_w == 0.0 or y is None:
            eps_theta = model(x_t, t, y)
        else:
            eps_cond = model(x_t, t, y)
            null_y = torch.full_like(y, model.null_class_idx)
            eps_uncond = model(x_t, t, null_y)
            eps_theta = (1 + guidance_w) * eps_cond - guidance_w * eps_uncond

        mean = (torch.sqrt(alpha_t) * (x_t - (beta_t / sqrt_one_minus_ab) * eps_theta))
        if (t > 0).all():
            return mean + torch.sqrt(beta_t) * torch.randn_like(x_t)
        else:
            return mean

    @torch.no_grad()
    def sample(self, model, shape, decode_fn, n_steps=None, y=None, guidance_w=0.0):
        model.eval()
        B, latent_dim = shape
        x_t = torch.randn(B, latent_dim, device=self.device)
        timesteps = self.cfg.timesteps if n_steps is None else n_steps
        t_space = torch.linspace(self.cfg.timesteps-1, 0, timesteps, dtype=torch.long, device=self.device)
        for t_scalar in t_space:
            t = torch.full((B,), int(t_scalar.item()), device=self.device, dtype=torch.long)
            x_t = self.p_sample(model, x_t, t, y=y, guidance_w=guidance_w)
        return decode_fn(x_t).clamp(0, 1)

# --------- EMA（指数移動平均） ----------
class EMA:
    def __init__(self, model, decay=0.999):
        self.decay = decay
        self.shadow = {k: v.detach().clone() for k, v in model.state_dict().items()}

    @torch.no_grad()
    def update(self, model):
        for k, v in model.state_dict().items():
            self.shadow[k].mul_(self.decay).add_(v.detach(), alpha=1 - self.decay)

    def copy_to(self, model):
        model.load_state_dict(self.shadow, strict=True)

# --------- Training (DDPM) ----------
def train_ddpm(latent_net, ddpm, vae, loader, device,
               epochs=5, lr=2e-4, num_classes=10, cond_drop_prob=0.2,
               weight_decay=0.0, ema_decay=0.999):
    opt = torch.optim.AdamW(latent_net.parameters(), lr=lr, betas=(0.9, 0.999), weight_decay=weight_decay)
    sched = torch.optim.lr_scheduler.CosineAnnealingWarmRestarts(opt, T_0=5, T_mult=2)
    scaler = torch.cuda.amp.GradScaler(enabled=(device.type=='cuda'))

    vae.eval()
    ema = EMA(latent_net, decay=ema_decay)

    for ep in range(1, epochs+1):
        latent_net.train()
        pbar = tqdm(loader, desc=f"[DDPM] {ep}/{epochs}")
        for x, y in pbar:
            x = x.to(device); y = y.to(device)

            with torch.no_grad():
                mu, logvar = vae.enc(x)
                z0 = vae.reparam(mu, logvar)

            # classifier-free 学習: ラベルを一定確率で null に置換
            if cond_drop_prob > 0:
                drop = (torch.rand_like(y.float()) < cond_drop_prob)
                y = y.clone()
                y[drop] = latent_net.null_class_idx

            t = torch.randint(0, ddpm.cfg.timesteps, (z0.size(0),), device=device)
            z_t, noise = ddpm.q_sample(z0, t)

            with torch.cuda.amp.autocast(enabled=(device.type=='cuda')):
                pred = latent_net(z_t, t, y)   # ε 予測
                loss = F.mse_loss(pred, noise)

            opt.zero_grad(set_to_none=True)
            scaler.scale(loss).backward()
            torch.nn.utils.clip_grad_norm_(latent_net.parameters(), 1.0)
            scaler.step(opt); scaler.update()
            ema.update(latent_net)
            sched.step()

    return latent_net, ema

# --------------------
# 実行
# --------------------
if __name__ == "__main__":
    seed_everything(42)
    device = get_device()
    print("Device:", device)

    # MNIST Data
    from torchvision import transforms
    tfm = transforms.ToTensor()
    train_ds = datasets.MNIST(root="./data", train=True, download=True, transform=tfm)
    train_loader = DataLoader(train_ds, batch_size=128, shuffle=True, num_workers=2, pin_memory=True)

    # VAE学習
    latent_dim = 16          # ← DDPM側と必ず一致
    vae = VAE(latent_dim=latent_dim, ch=48)
    vae = train_vae(vae, train_loader, device,
                    epochs=5, lr=1e-3, beta_max=0.5, edge_lambda=0.05,
                    out_dir="runs_vae", save_recon_every_epoch=True)

    # DDPM学習（クラス条件 & CFG学習用ドロップ）
    cfg = DDPMConfig()
    ddpm = DDPM(cfg, device)
    num_classes = 10
    latent_net = LatentNoisePredictor(latent_dim=latent_dim, num_classes=num_classes, hidden=768).to(device)
    latent_net, ema = train_ddpm(
        latent_net, ddpm, vae, train_loader, device,
        epochs=10, lr=2e-4, num_classes=num_classes, cond_drop_prob=0.2,
        weight_decay=0.0, ema_decay=0.999
    )

    # サンプリング（EMA重みで推論）
    ema.copy_to(latent_net)

    # 生成したい数字とCFG強度を指定
    B = 64
    target_digit = 5
    y = torch.full((B,), target_digit, device=device, dtype=torch.long)

    decode_fn = lambda z: torch.sigmoid(vae.dec(z))  # logits→確率
    imgs = ddpm.sample(
        latent_net, shape=(B, latent_dim), decode_fn=decode_fn,
        n_steps=250, y=y, guidance_w=3   # CFGは 1.5〜2.5 でチューニング
    )

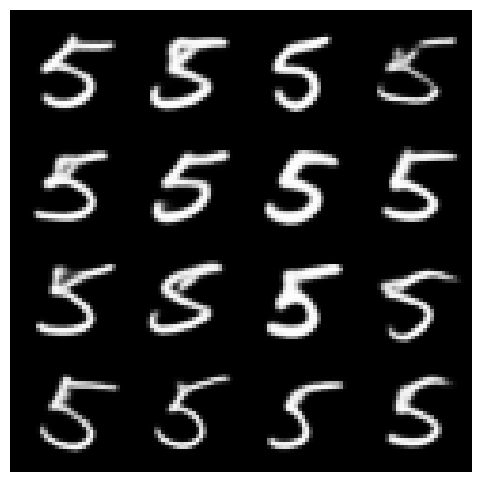

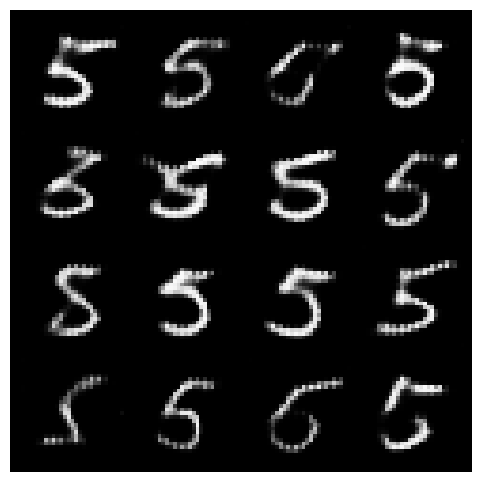

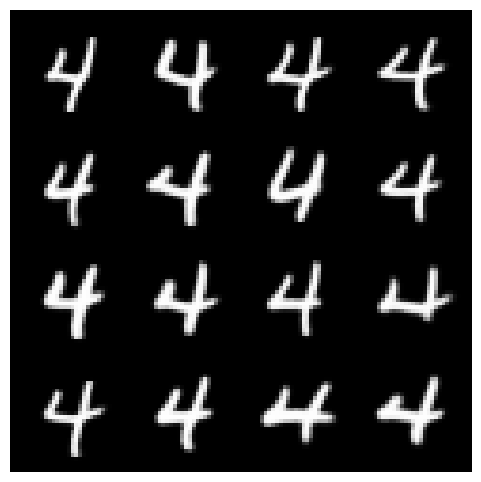

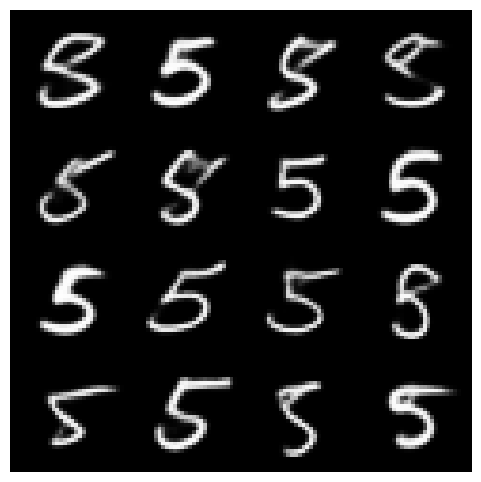

    # 可視化
    grid = vutils.make_grid(imgs[:16], nrow=4)
    import matplotlib.pyplot as plt
    plt.figure(figsize=(6,6)); plt.axis("off")
    plt.imshow(grid.permute(1,2,0).cpu().numpy())
    plt.show()
